How do you make a histogram with equally sized dots or squares for each observation, and colour them by another variable

Answering reader’s questions.

Author

Mauricio “Pachá” Vargas S.

Published

August 29, 2025

Because of delays with my scholarship payment, if this post is useful to you I kindly ask a minimal donation on Buy Me a Coffee that shall be used to continue my Open Source efforts. If you need an R package or Shiny dashboard for your team, you can email me or inquiry on Fiverr. The full explanation is here: A Personal Message from an Open Source Contributor

You can send me questions for the blog using this form.

I got this question from a reader: How do you make a histogram with equally sized dots or squares for each observation, and colour them by another variable?

I shall use the Palmer’s Penguins dataset to answer this, which contains observation about the species and body mass for a sample of penguins:

if (!require(palmerpenguins)) install.packages("palmerpenguins")
if (!require(dplyr)) install.packages("dplyr")

library(palmerpenguins)
library(dplyr)

glimpse(penguins)

Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel~
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse~
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, ~
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, ~
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186~
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, ~
$ sex               <fct> male, female, female, NA, female, male, female, male~
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007~

To use squares, one possibility is to create a discrete body mass variable by intervals and count by species and interval:

if (!require(tidyr)) install.packages("tidyr")

Loading required package: tidyr

if (!require(ggplot2)) install.packages("ggplot2")

Loading required package: ggplot2

if (!require(tintin)) install.packages("tintin")

Loading required package: tintin

library(tidyr)
library(ggplot2)
library(tintin)

# Create quantile-based bins (wider bins)
n_bins <- 5  # number of quantile bins

d <- penguins %>%
  drop_na(body_mass_g, species) %>%
  mutate(body_mass_d = cut(body_mass_g, breaks = 4, dig.lab = 6)) %>%
  group_by(species, body_mass_d) %>%
  count()

d

# A tibble: 9 x 3
# Groups:   species, body_mass_d [9]
  species   body_mass_d       n
  <fct>     <fct>         <int>
1 Adelie    (2696.4,3600]    71
2 Adelie    (3600,4500]      73
3 Adelie    (4500,5400]       7
4 Chinstrap (2696.4,3600]    26
5 Chinstrap (3600,4500]      40
6 Chinstrap (4500,5400]       2
7 Gentoo    (3600,4500]      17
8 Gentoo    (4500,5400]      72
9 Gentoo    (5400,6303.6]    34

Now I can create a Tetris-style column plot where each square represents 5 penguins:

square_size <- 5  # square = 5 observations

d_squares <- d %>%
  mutate(
    full_squares = n %/% square_size,          # number of full squares
    remainder = n %% square_size,              # remaining observations
    partial_height = remainder / square_size   # height of partial square
  )

# Create full squares
full_squares_df <- d_squares %>%
  filter(full_squares > 0) %>%
  uncount(full_squares) %>%
  group_by(species, body_mass_d) %>%
  mutate(square_id = row_number() - 1,
         y = square_id + 0.5,
         height = 1,
         square_type = "full") %>%
  ungroup()

# Create partial squares
partial_squares_df <- d_squares %>%
  filter(remainder > 0) %>%
  mutate(square_id = full_squares,
         y = full_squares + partial_height/2,
         height = partial_height,
         square_type = "partial")

# Combine both
d_squares <- bind_rows(full_squares_df, partial_squares_df)

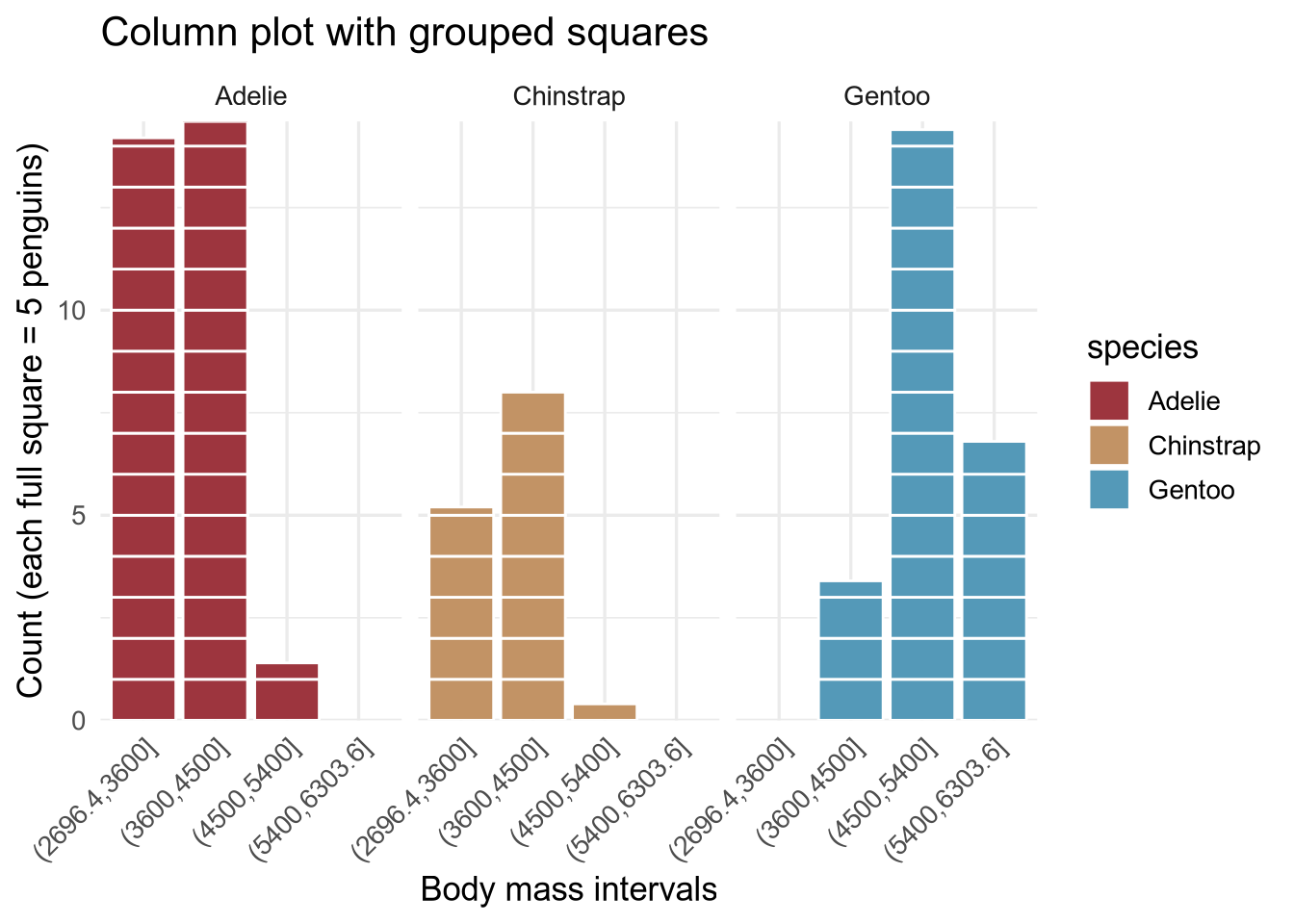

# Create Tetris-style column plot with grouped squares
ggplot(d_squares, aes(x = body_mass_d, y = y, fill = species)) +
  geom_tile(aes(height = height), width = 0.9, color = "white", linewidth = 0.5) +
  scale_x_discrete(name = "Body mass intervals") +
  scale_y_continuous(name = paste0("Count (each full square = ", square_size, " penguins)"),
                     expand = expansion(add = 0)) +
  scale_fill_tintin_d(option = "the black island", direction = -1) +
  labs(title = "Column plot with grouped squares") +
  facet_wrap(~species) +
  theme_minimal(base_size = 13) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

I hope this is useful :)
